Best Flat Lap Machines for Beginners: All-U-Need 6 vs 8

Choose a flat-lap diameter around workpiece size, disc cost and bench space instead of assuming a larger lap is automatically better.

Quick answer: For most first flat-lap setups, choose the All-U-Need 6-inch when compact size and lower disc cost matter. Choose the 8-inch when you regularly work broader flats, larger freeforms or pieces that feel cramped on a 6-inch disc.

Flat-lap picks

See the products before the deep dive

Start with the shortlist, then use the guide below to decide which tradeoffs actually matter for your batch.

Top pick

Hi-Tech Diamond All-U-Need 6-inch Rock/Mineral

Beginners who want a compact flat-lap machine for shaping, smoothing and polishing cabochons and flat rock surfaces.

6 in lap; 2-1/4 in working radius Check Price on Amazon

Also consider

Hi-Tech Diamond All-U-Need 8-inch Rock/Mineral

Lapidary users who want the All-U-Need workflow with more usable disc area for larger cabochons, flats and broader workpieces.

8 in lap; 3-1/4 in working radius Check Price on Amazon

6 in2-1/4 in working radius

8 in3-1/4 in working radius

Buying guideCompare Included kit Workflow Water Running cost

The same motor platform makes size the real decision

Both rock/mineral models use a compact 1/4 hp variable-speed direct-drive motor rated from 800 to 3,400 rpm. The practical difference is the usable working radius and the diameter—and therefore long-term cost—of the consumables you will keep replacing.

Compare 6-inch and 8-inch before you buy

Decision	All-U-Need 6	All-U-Need 8
Best fit	Small to medium cabochons, compact home bench	Larger flats and more working surface
Working radius	2-1/4 in	3-1/4 in
Motor family	1/4 hp variable speed, 800–3,400 rpm	1/4 hp variable speed, 800–3,400 rpm
Machine footprint	10 x 10 x 12 in; about 9 lb
Consumable cost	Smaller discs generally cost less	Larger discs generally cost more

Top pick

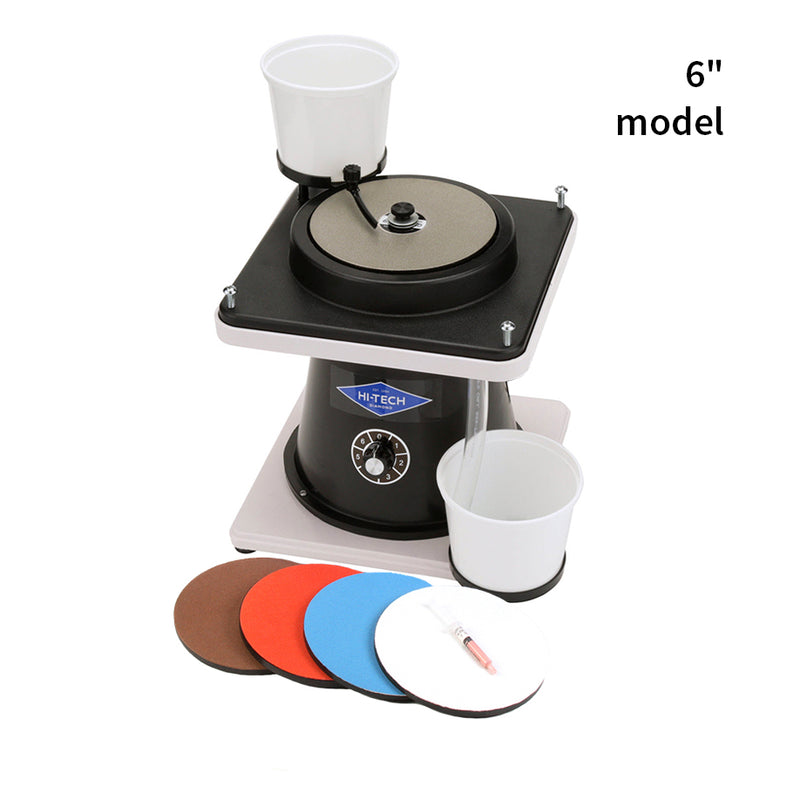

Hi-Tech Diamond All-U-Need 6-inch Rock/Mineral

Best for: Beginners who want a compact flat-lap machine for shaping, smoothing and polishing cabochons and flat rock surfaces.

Check Price on Amazon

TypeVariable-speed flat lap Capacity6 in lap; 2-1/4 in working radius

Why it made the shortlist

1/4 hp variable-speed direct-drive motor rated from 800 to 3,400 rpm.
Compact 10 x 10 x 12 in machine footprint and 9 lb machine weight.
Rock/mineral kit includes 180# lap, 325/600/1200 smoothing discs, polishing pad and 14,000# diamond paste.
Built-in water setup supports wet grinding and polishing.

Know before buying

Six-inch working area is more compact than the 8-inch model for larger flats and broad pieces.
Consumable discs and backing plates become part of the long-term operating cost.
It is a flat-lap workflow, not a substitute for a saw when material must be cut first.

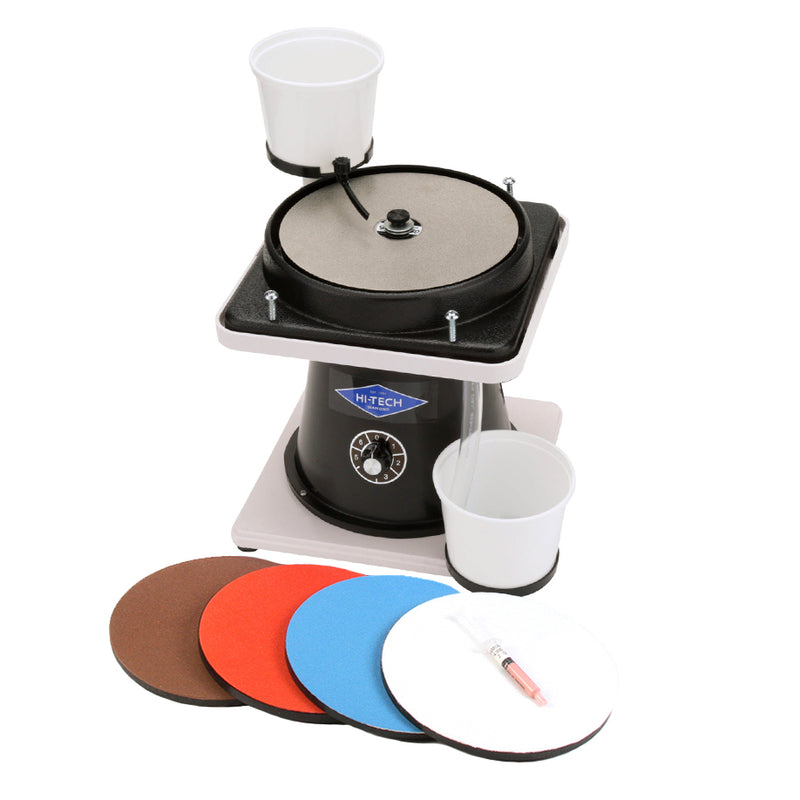

Hi-Tech Diamond All-U-Need 8-inch Rock/Mineral

Best for: Lapidary users who want the All-U-Need workflow with more usable disc area for larger cabochons, flats and broader workpieces.

Check Price on Amazon

TypeVariable-speed flat lap Capacity8 in lap; 3-1/4 in working radius

Why it made the shortlist

Same 1/4 hp variable-speed platform as the All-U-Need family, rated from 800 to 3,400 rpm.
Larger 8 in lap gives a 3-1/4 in working radius from arbor to rim.
Rock/mineral accessory sequence supports grinding, smoothing and final polishing.
Portable wet flat-lap format keeps the workflow compact compared with a multi-wheel cabbing station.

Know before buying

Larger discs cost more to replace than 6-inch consumables.
The extra surface area only matters if your workpieces benefit from it.
Like the 6-inch version, cutting rough still requires a separate saw or pre-cut material.

What the rock/mineral kit includes

180#Electroplated diamond lap

Initial grinding and shape correction.

→

325#Brown smoothing disc

Begin replacing coarse scratches.

→

600#Red smoothing disc

Refine the scratch pattern.

→

1200#Blue smoothing disc

Prepare for final polish.

→

14,000#Paste + Tech-11 pad

Final polishing stage.

The current package also includes four acrylic backing plates, a water kit, Allen wrench, waterproof apron, written/visual instructions and a one-year manufacturer warranty.

What a flat lap does well

FlattenBacks and broad faces

A horizontal disc makes it easy to establish a flat reference surface.

ShapeFreeforms and cabochon outlines

Use the disc edge and face deliberately while keeping the workpiece moving.

SmoothProgressively replace scratches

The included disc sequence moves from grinding to fine smoothing before polish.

PolishFinish on a dedicated pad

Polish works only after earlier scratches are actually removed.

The water system is simple—and part of the workflow

The standard All-U-Need water kit uses a clean-water cup with a control valve and a separate catch cup for dirty runoff. That keeps the machine compact, but longer sessions may benefit from an upgraded water-delivery setup. Regardless of system, wet grinding controls heat and captures debris; it does not eliminate cleanup.

Clean waterValve meters water onto the disc

→

Grinding zoneWater cools the work and carries debris

→

Catch trayDirty runoff drains away from the disc

Budget for consumables, not just the machine

The included set gets a beginner working immediately, but discs and polishing surfaces wear. The 8-inch machine earns its extra consumable cost only when the larger working radius solves a real workpiece-size problem.
