Budget workshop guide
Lapidary Setup Under $1,000: A Realistic Two-Machine Starter Plan
Build a compact cutting, grinding and polishing workflow without pretending a four-figure budget can also buy large-rough capacity and a dedicated six-wheel production station.
Two-machine starter setup
See the products before the deep dive
Start with the shortlist, then use the guide below to decide which tradeoffs actually matter for your batch.
Hi-Tech Diamond 4/5-inch Trim Saw
Small cabochon preforms, faceting material and compact home benches where a 6-inch saw would be more machine than the normal work requires.
4/5 in blades; up to 1-1/2 in blade height with the 5 in blade Check Price on Amazon
Hi-Tech Diamond All-U-Need 6-inch Rock/Mineral
Beginners who want a compact flat-lap machine for shaping, smoothing and polishing cabochons and flat rock surfaces.
6 in lap; 2-1/4 in working radius Check Price on AmazonEquipment-only planning example. Tax, shipping, extra blades, discs, PPE and shop supplies are outside this $1,000 line.
What the two-machine setup can actually do
→
→
→
This is a compact cabochon and small-lapidary workflow. It does not give you the capacity of a 10-inch slab saw or the speed of a six-wheel cabbing station. That limitation is exactly why the budget can work.

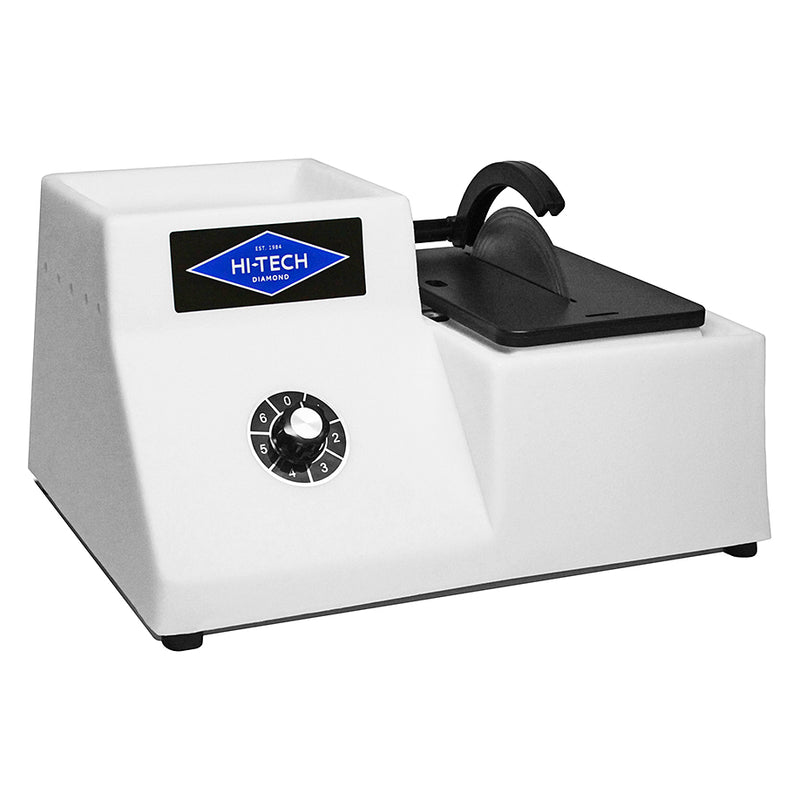

Machine 1: compact trim saw
The 4/5-inch Hi-Tech saw keeps the cutting side of the budget low. With the 5-inch blade installed, the manufacturer specifies up to 1-1/2 inches of blade height. That is enough for smaller preforms and modest rough, but large chunks still need to arrive pre-slabbed or be cut elsewhere.
Hi-Tech Diamond 4/5-inch Trim Saw
Best for: Small cabochon preforms, faceting material and compact home benches where a 6-inch saw would be more machine than the normal work requires.
Check Price on AmazonWhy it made the shortlist
- 1/4 hp variable-speed direct-drive motor rated from 800 to 3,400 rpm.
- Compact 13 x 9-1/2 x 7 in body weighs about 10 lb.
- Includes both 4 in and 5 in thin notched diamond blades, giving 1 in and 1-1/2 in blade-height options.
- Built-in 8 oz coolant reservoir and removable work table simplify a small wet-cutting station.
Know before buying
- The smaller table and 1-1/2 in maximum blade height are restrictive for chunkier rough.
- It is a trim saw for small work, not a substitute for a slab saw.
Machine 2: 6-inch flat lap
The 6-inch All-U-Need keeps grinding, smoothing and polishing on one compact variable-speed platform. The included rock/mineral kit covers the core progression, which is important in a budget build because buying the machine without a usable abrasive sequence would make the $1,000 headline meaningless.
Hi-Tech Diamond All-U-Need 6-inch Rock/Mineral
Best for: Beginners who want a compact flat-lap machine for shaping, smoothing and polishing cabochons and flat rock surfaces.
Check Price on AmazonWhy it made the shortlist
- 1/4 hp variable-speed direct-drive motor rated from 800 to 3,400 rpm.
- Compact 10 x 10 x 12 in machine footprint and 9 lb machine weight.
- Rock/mineral kit includes 180# lap, 325/600/1200 smoothing discs, polishing pad and 14,000# diamond paste.
- Built-in water setup supports wet grinding and polishing.
Know before buying
- Six-inch working area is more compact than the 8-inch model for larger flats and broad pieces.
- Consumable discs and backing plates become part of the long-term operating cost.
- It is a flat-lap workflow, not a substitute for a saw when material must be cut first.
What still needs a separate budget
Use the machine maker’s safety guidance and keep appropriate protection at the wet-work station.
Diamond blades are consumables. Match diameter, arbor and blade style to the saw and material.
The included lap sequence gets you started, but worn discs and material-specific finishing supplies become recurring costs.
A stable surface, lighting, clean-water handling and slurry cleanup are shop infrastructure, not optional decoration.
Why the 6-inch trim saw breaks this specific budget
At current manufacturer pricing, the 6-inch trim saw is about $499 and the 6-inch All-U-Need about $599, so the pair is roughly $1,098 before extras. The 6-inch saw is the more versatile cutter, but the smaller 4/5-inch machine is what keeps this particular two-machine equipment target below four figures.
When spending more upfront is smarter
Your ordinary rough is already close to the 4/5-inch machine’s clearance limits. Saving money on a saw that is too small is not a real saving.
Your main material is large rough or geodes. The compact setup assumes the material already fits a trim-saw workflow.
A compact bench layout
Who this budget is for
This setup fits someone moving beyond tumbling who wants to cut small material and make cabochons or polished flats at home without buying a full-size slab saw or six-wheel cabbing station. If that description does not match your material, use Best Lapidary Equipment for Beginners to choose the machine type before choosing the budget.
